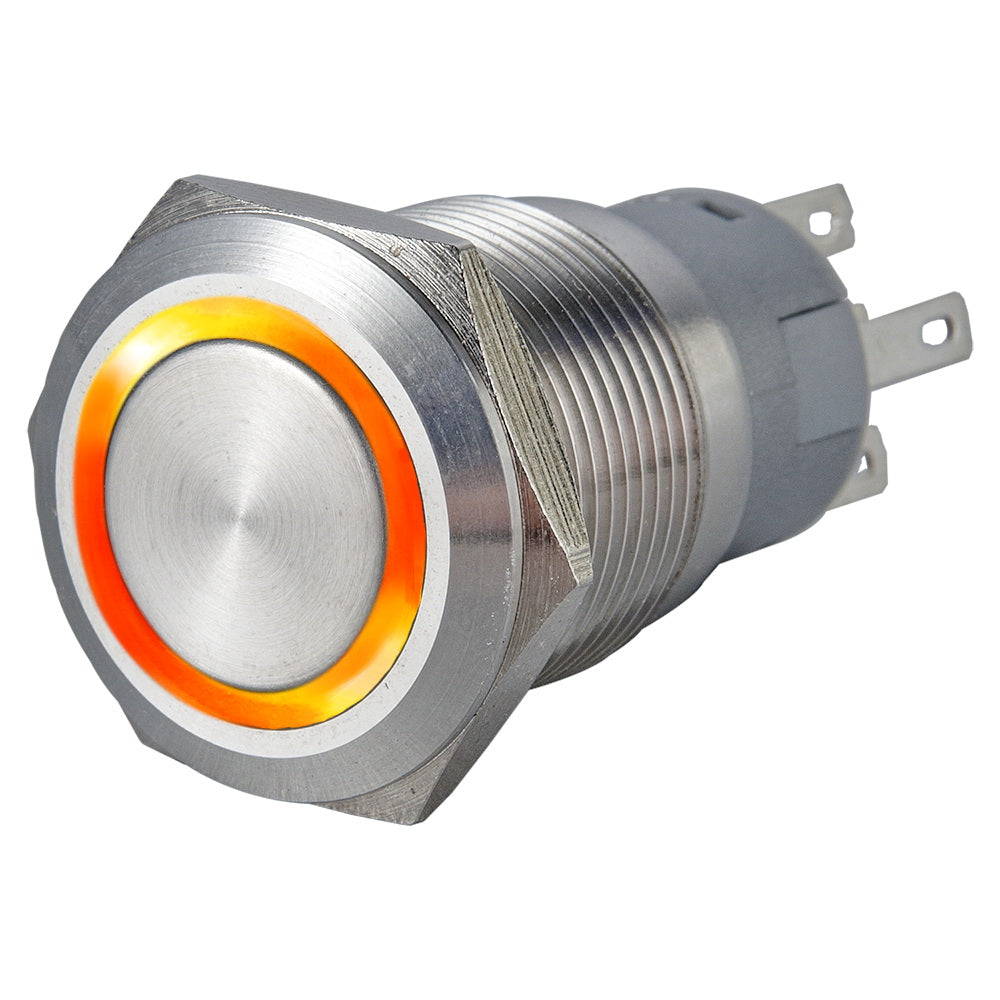

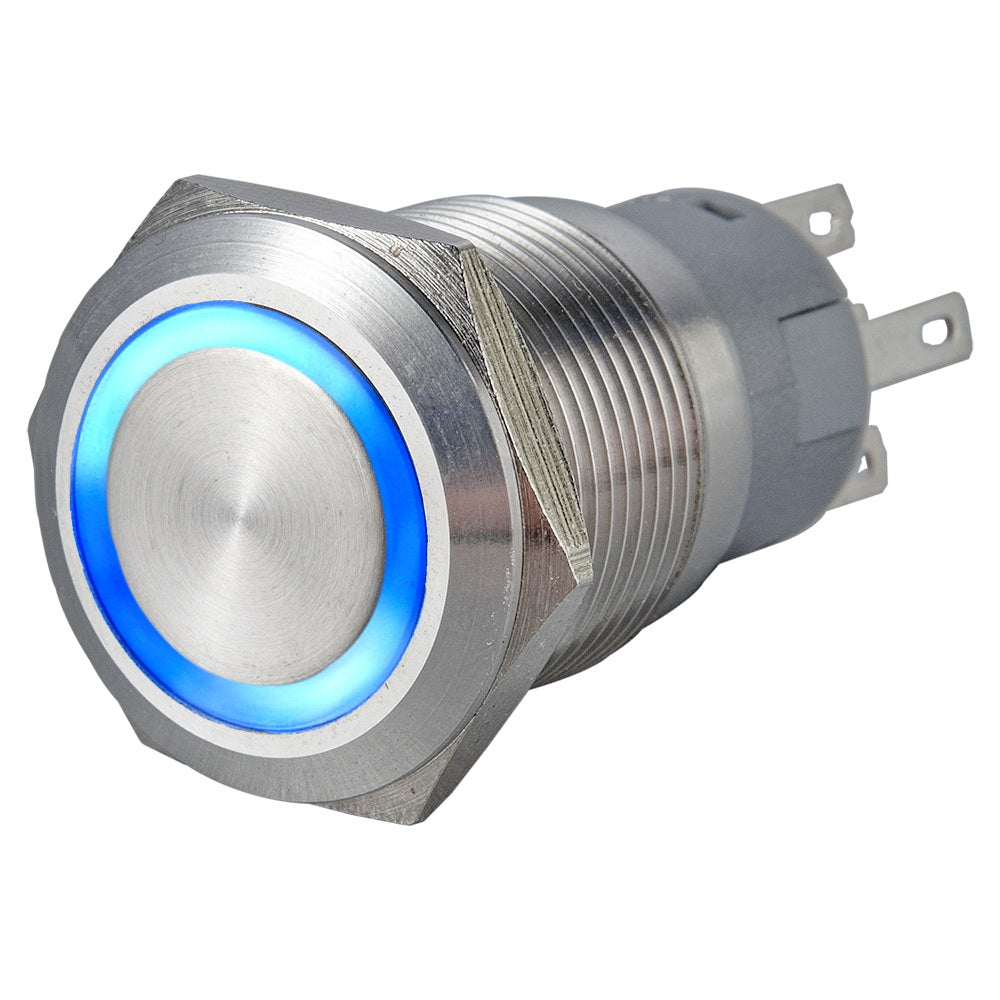

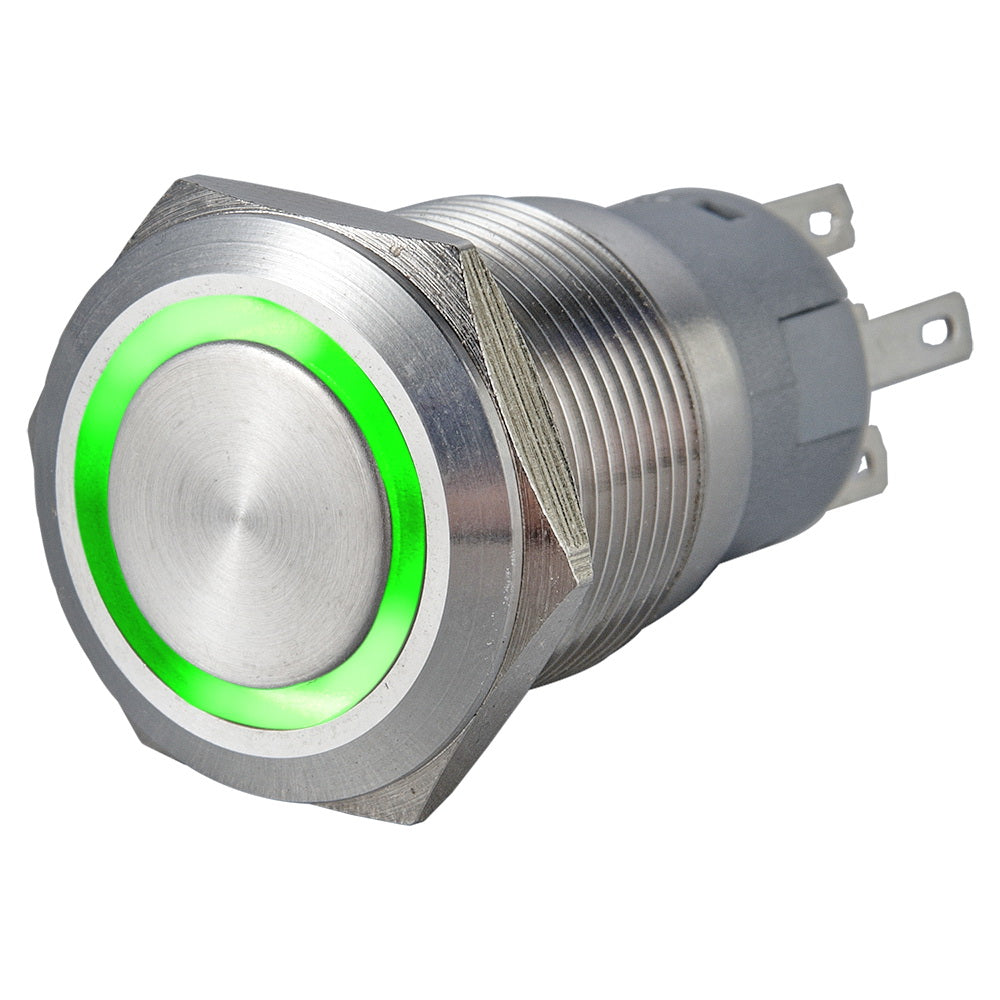

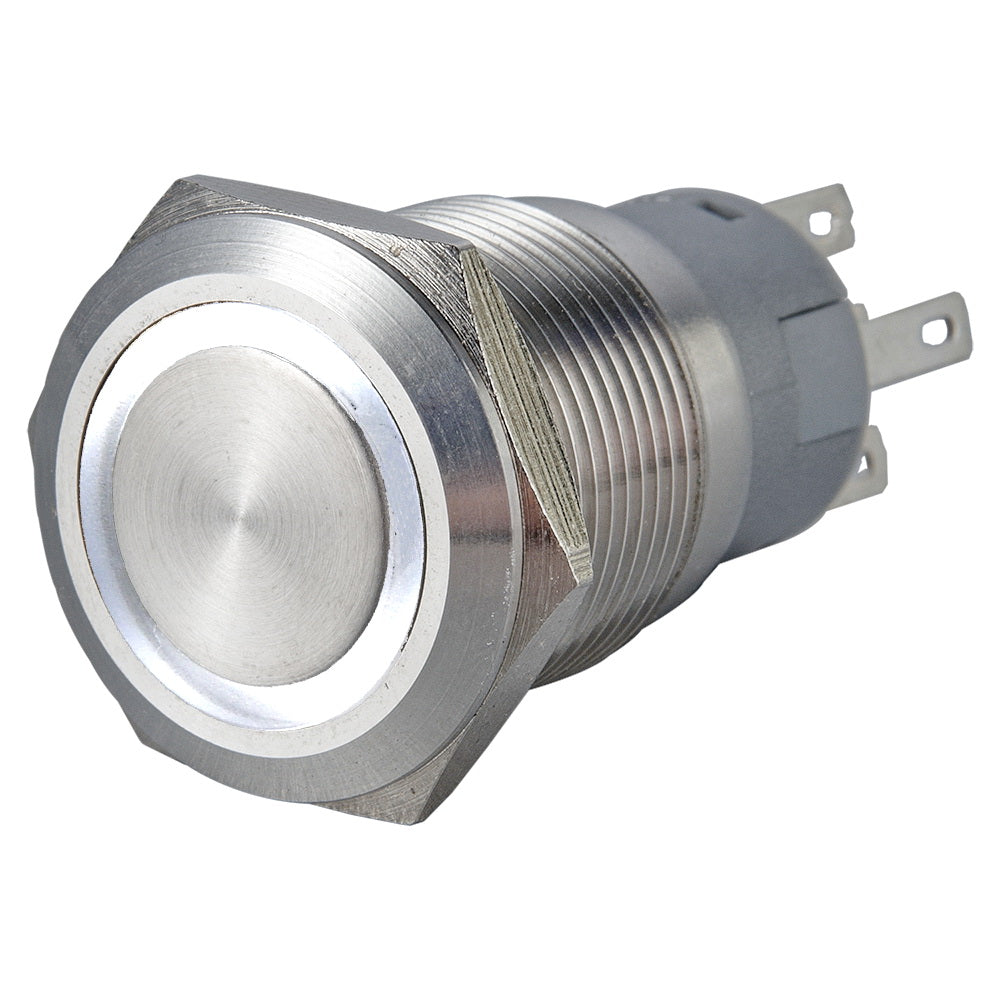

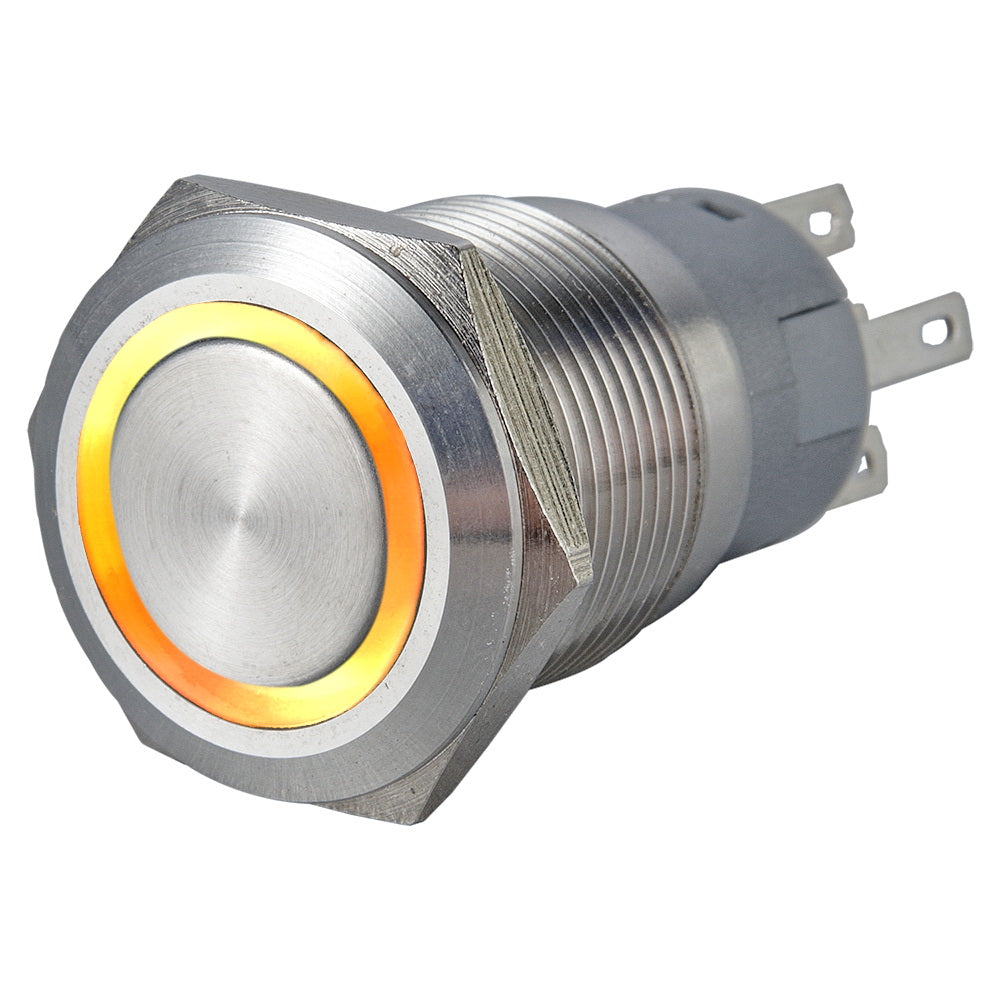

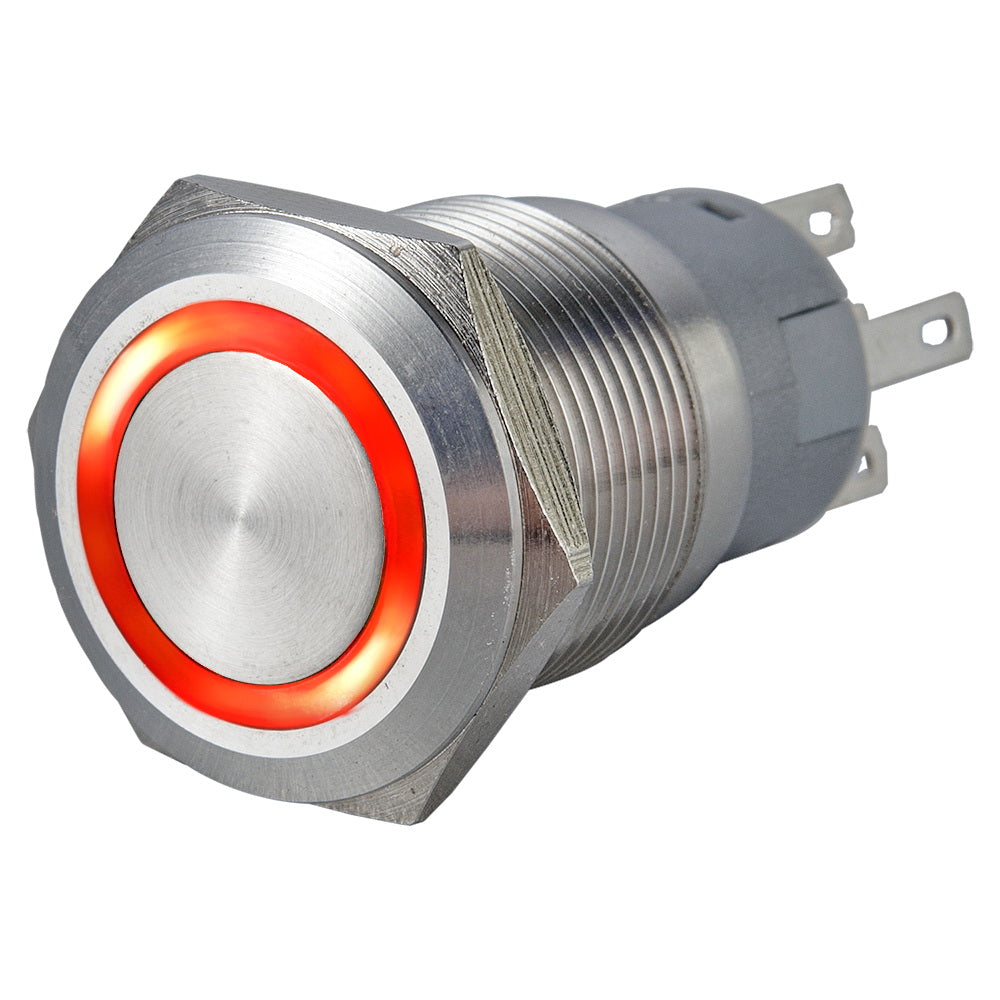

19mm Ring Illuminated Stainless Steel Anti Vandal Switch - Pin Terminal(2.8x0.5mm)
The Anti-vandal switches are designed for both functionality and aesthetics, offering robust and durable switching solutions. These switches are versatile, available with various options for bushing diameters, actuator shapes,...
The Anti-vandal switches are designed for both functionality and aesthetics, offering robust and durable switching solutions. These switches are versatile, available with various options for bushing diameters, actuator shapes, and materials, making them adaptable to diverse operational needs.
Features
- Customizable Designs: Available in different bushing diameters and actuator shapes, along with a choice of materials for both bushings and actuators to suit specific requirements.
- Color Variability: Comes in a variety of colors, allowing for better integration into the aesthetic design of the application environment.
- Operating Modes: Features both momentary and latching modes to cater to different functional requirements. The momentary mode returns the switch to its original position after activation, while the latching mode maintains the switch's position until it is actuated again.
- High Durability and Security: Equipped with an anti-vandal rating of IK09 and sealed to IP65 standards, providing enhanced protection against physical tampering and environmental elements.
- Illumination Options: Offers illuminated and non-illuminated versions to accommodate various visibility needs. Illuminated options include the L19 Dot Illumination and L19 Ring Illumination, enhancing user interaction and visibility in low-light conditions.
Typical Applications
Technical Data
| Type | L19-F | L19-F-R | L19-F-D | ||||
| Illuminated Options | Non-Illuminated | Ring | Dot | ||||
| Max. Panel Thickness: | 0.394″ (10.0mm) | ||||||
| Terminal | Screw/ Pin(2.8×0.5) | ||||||
| Max. Switch Rating | 5A/ 250VAC | ||||||
| Contact Resistance | ≤50mΩ | ||||||
| Insulation Resistance | ≥1000mΩ | ||||||
| Dielectric Strengh | 2000VAC | ||||||
| Operation Temp. | -20°C ~ +55°C | ||||||
| Mechanical Life | 1,000,000cycles | ||||||
| Electrical Life | >50,000cycles | ||||||
| Contact Material | Silver Alloy | ||||||
| Torque | 5 ~ 14Nm | ||||||
| Operation Pressure | approx. 3 ~ 8N | ||||||
| Protection | IP65/ IK09 | ||||||
| Material | Actuator | Stainless Steel/ Anodized Aluminum | |||||
| Body | Stainless Steel/ Anodized Aluminum | ||||||
| Base | PA | ||||||
| Color | Type | LED (ratings @ 20mA) | |||||
| Color | R-Red | Y- Yellow | O- Orange | G- Green | B- Blue | W- White | |
| Luminous Intensity (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 | |
| Forward Volatge | 1.8~2.6 | 2.8~3.6 | |||||
| Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. | ||||||
| 6V/ 12V/ 24V/ 36V/ 110V/ 230V | |||||||
| Life | Approx. 40, 000hours | ||||||
On the product detail page of every series you will find information about the switch. If it is washable or sealed to a certain IP rating, it will list it on the product detail page. To get to the product detail page, go to our product catalog and search by type or by feature.
It is a safe assumption to note that all Langir switches comply with EN 60529.
It is a safe assumption to note that all our switches comply with RoHS standards. You can find our complete library of RoHS certifications by part number, Certifications.
We have solder profile recommendations for hand soldering, SMT reflow and wave soldering processes. You can find our recommendations Soldering Profiles.
Help can be given either over the phone by sending the fix parts to you, or we will requires you to send products back to us for fixing.
Water-Wash, Process-Sealed, IP67 Switch Seal Rating
Definition of IP Codes (Ingress Protection):
IEC (International Electrotechnical Commission) 60529 Standards document specifies an international Classification system for the sealing effectiveness of enclosures of electrical equipment against the “Intrusion into the equipment of foreign bodies and moisture”.
1. Degrees of Protection – First Digit
6 Dust-tight
2. Degrees of Protection – Second Digit
7 Protection against effects of immersion from 15cm to 1m (6″ to 40″).
Based on the above, our standard for defining a “process-sealed” switch is “sealed to meet the minimum requirements of IP-67”. This means that a switch rated to IP-67 is “Dust-tight” and will pass a water submersion test at 40″ (1m), for up to 30 minutes.
Due to the variables encountered in actual water-wash machine processing, IP67 does not necessarily insure that water entry into the switch cannot occur. the water-wash pressures and air-knife drying that occurs in modern pcb machine-washing can exceed the seal requirements of the IP-67 rating.
We offer worldwide fast shipping within 3-7 business days for all orders.
Enjoy the convenience of our 30-day return and refund policy.
Click to learn more about Langir's Shipping & Returns Policy.
